Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : GJYFXCH-1F/GJFXH-1F

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Keyword : Optical Fiber Drop Cable

Type : GJYFXCH-1F/GJFXH-1F

Jacket Sheath : LSZH

Net Weight : 0.8kg/km, add 0.05kg/km

Steel : 0.45mm

Installation Style : Aerial

Fiber : G652D/G657A1/g657A2

Steel Wires : 1mm, 0.45mm*2pcs

Installation Method : Indoor/Outdoor

Contact Now

Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll Price

A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.

Product Description:
With metal strength member, flame-retardant LSZH jacket and special Low-bend-sensitivity fiber, suitable for direct aerial installation into the houses in FTTH projects.

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ). The cable is protected by two parallel strength members made of metal, steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Specification
FTTH DROP CABLE
MODEL: FDC-GJXCH-4B6a1
Fiber: SM G657A1
Fiber Count: 4
Parallel Wire: 0.45mm *2
Messenger Wire: 1.0mm
Jacket Material: LSZH
Cable Length: 1Km/Drum 2km/drum
Simple Specification:
Insertion Loss: ≤0.30dB Return Loss: ≥50dB
Durability: ≤0.2dB
Test Wavelength: 1310/1550nm
Operation temperature: -40℃~ 85℃
GJYXCH FTTH Fiber Optic Drop Cable 1 Core G657A1 Single Mode
Outdoor FTTH Drop Cable
With FRP & steel wire as strengthen member
LSZH outer sheath
G.657A1 optic fiber (or as request)
Fiber To The Home (ftth)
Product life of 15 years.
Storage/Operating Temperature: -40°C to + 70°C
Optical Cable Appplication
Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable
Laying method:
Working temperature: -40ºC~+60ºC
Bend radius: Static 12.5 times the cable diameter; Dynamic 25 times optical cable diameter
Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per RollOutdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll
Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per RollOutdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll
Bow-type Drop Outdoor/Indoor Cable for Access Network
Technical Parameters
Fiber Count
Cable Type
Cable
Cable Weight
(kg/km)
Tensiles Strength
Crush Resistance Long/short
Benging Radius
1
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
20
300/600
1000/2000
20D/40D
1
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
2
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D
4
GJYXCH
2.0*5.0
19
300/600
1000/2000
20D/40D


Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll


Product Tags:

FTTH fiber optic drop cable outdoor indoor



1 2 core FTTH drop cable



2Km fiber optic drop cable roll


Wholesale Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll from china suppliers

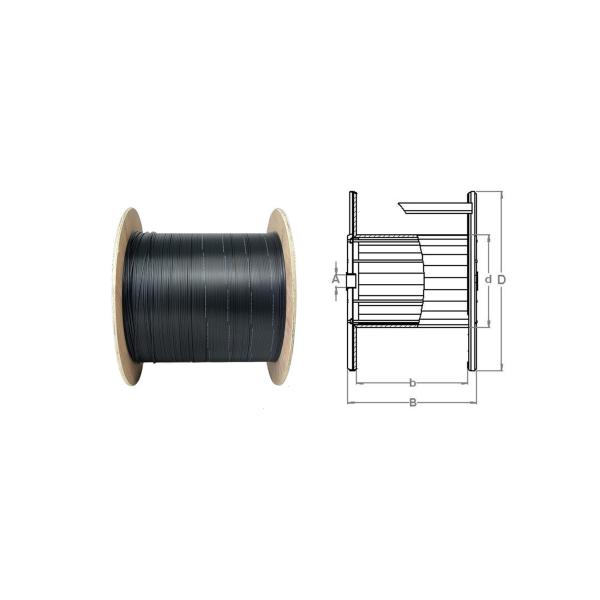

Outdoor Indoor Use 1 2 Core FTTH Fiber Optic Drop Cable 2Km Per Roll Images
